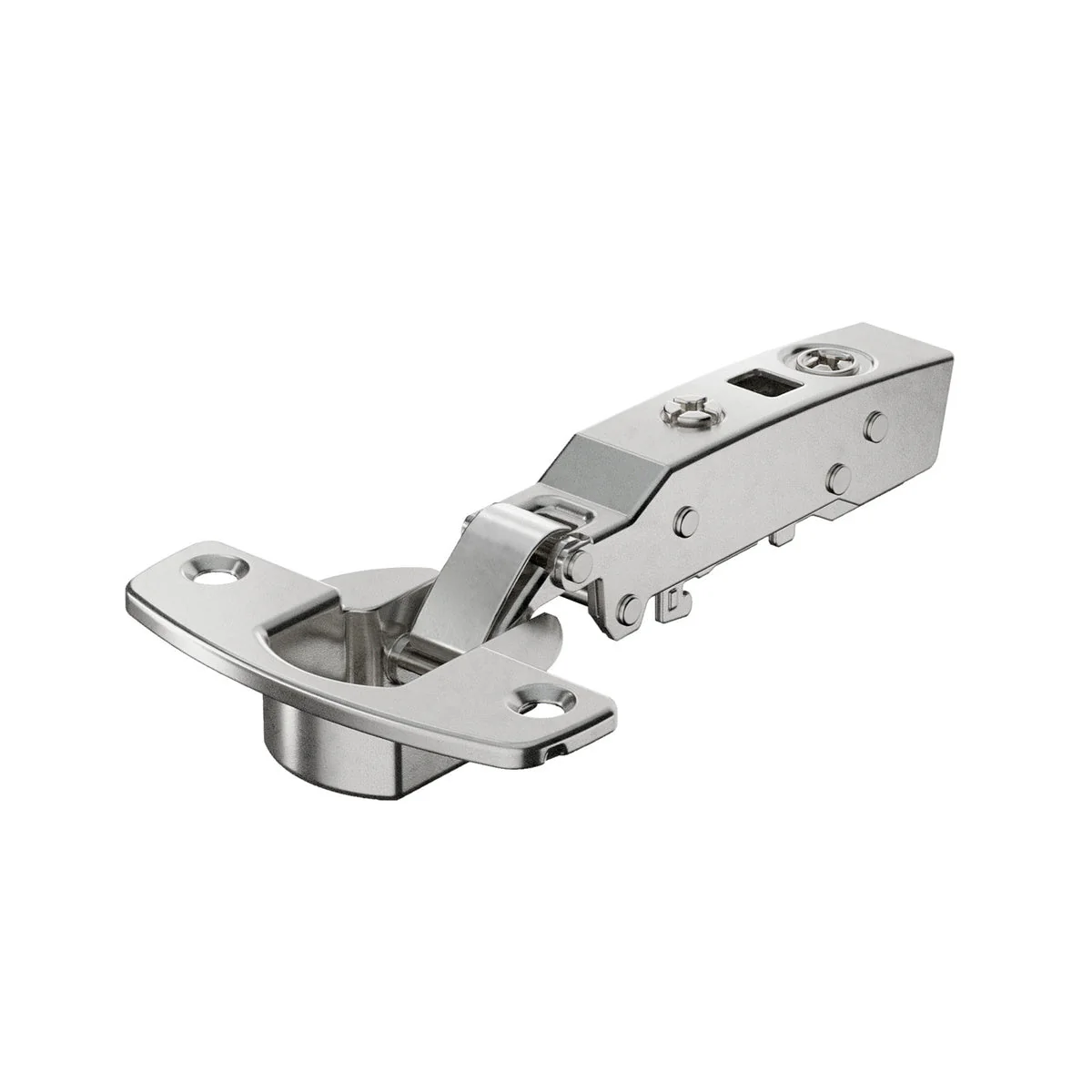

HETTICH 35MM HINGE 95 DEGREE OPENING FOR DOOR THICKNESS TO 32MM (PR)

HETTICH 35MM HINGE 95 DEGREE OPENING FOR DOOR THICKNESS TO 32MM (PR)

  • Sensys thick door hinge, door thickness up to 32 mm
  • With integrated Silent System, with self closing feature
  • Quality classification under EN 15570, Level 2
  • Opening angle 95Ā°
  • For door thickness 15-32 mm
  • Door mounting option overlay (B 12.5 mm)

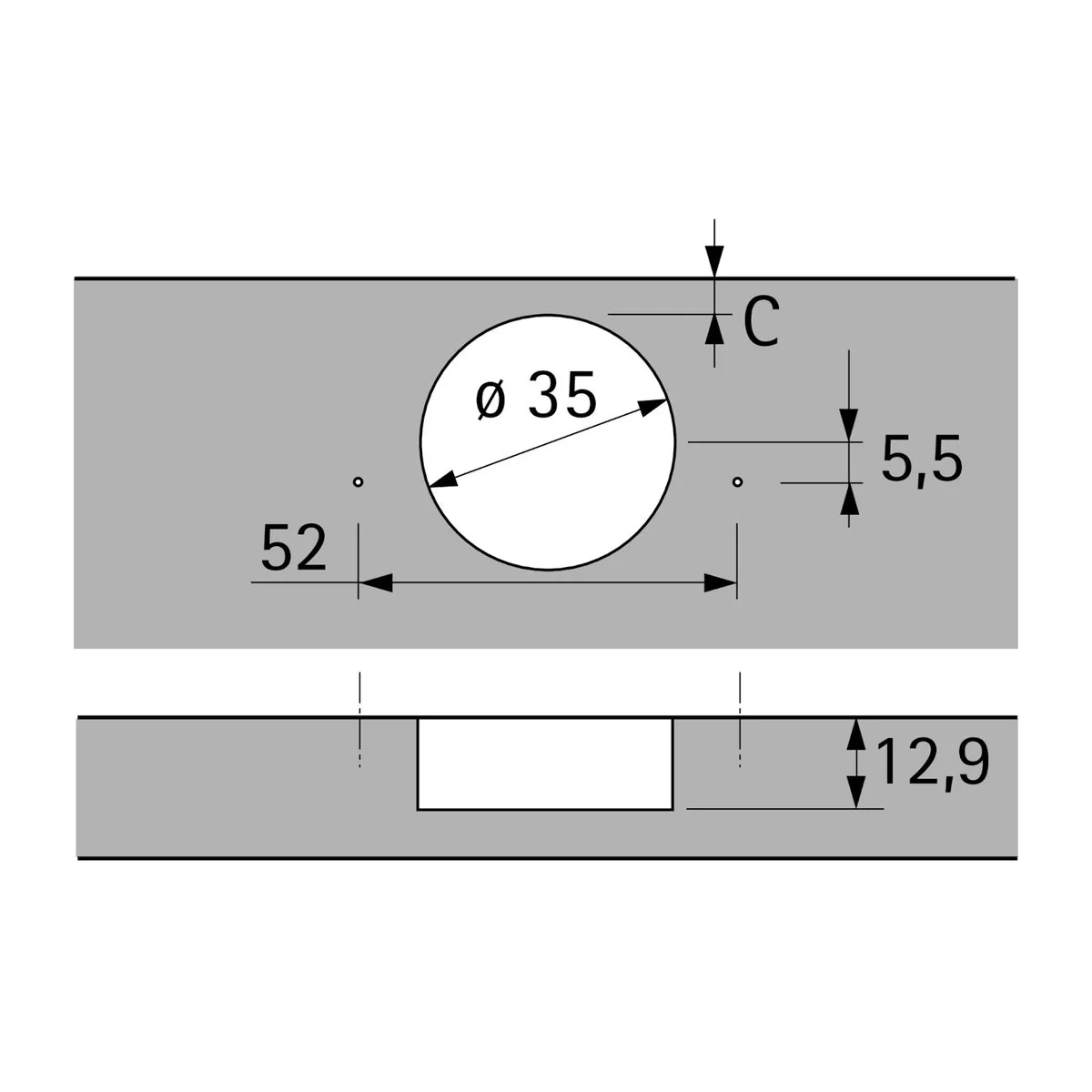

  • TH - drilling pattern 52 x 5.5 mm
  • Cup depth 12.8 mm
  • Installation for screwing on (TH 52)
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated
$10.50
HETTICH 35MM HINGE 95 DEGREE OPENING FOR DOOR THICKNESS TO 32MM (PR)ā€”
$10.50

Product Information

Shipping & Returns

Description

  • Sensys thick door hinge, door thickness up to 32 mm
  • With integrated Silent System, with self closing feature
  • Quality classification under EN 15570, Level 2
  • Opening angle 95Ā°
  • For door thickness 15-32 mm
  • Door mounting option overlay (B 12.5 mm)
  • TH - drilling pattern 52 x 5.5 mm
  • Cup depth 12.8 mm
  • Installation for screwing on (TH 52)
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated
